Step-by-Step Process For Enabling Authentication in Mule 4 Using HTTPS

Compared to Mule 3, Mule 4 improvements have provided significant API-led connectivity solutions to smooth the process of API development and testing with enhanced security. The basic authentication process in Mule 4 using the HTTPS protocol will ensure solid security to Mule applications. Below, we dive into the process of creating and enabling the HTTPS configuration for providing HTTPS service, security filters and authorization filters for validating the HTTPS request based on Spring module with basic authentication.

Process for Applying and Enabling HTTPS Configuration for Mule 4 HTTP Connector

Steps to Create Mule4 HTTPS Listener Configuration

Step 1: Create and import certificates.

Here, we cover the process of generating and using Keystore configuration. The standard Java JDK distribution does not include a Keystore by default. So, use Keytool to generate Keystores and certificates. The Keystore generated contains a private key and a public certificate. This certificate is self-signed. To create a self-signed cert:

keytool -genkey -alias mule -keyalg RSA -keystore keystore.jks

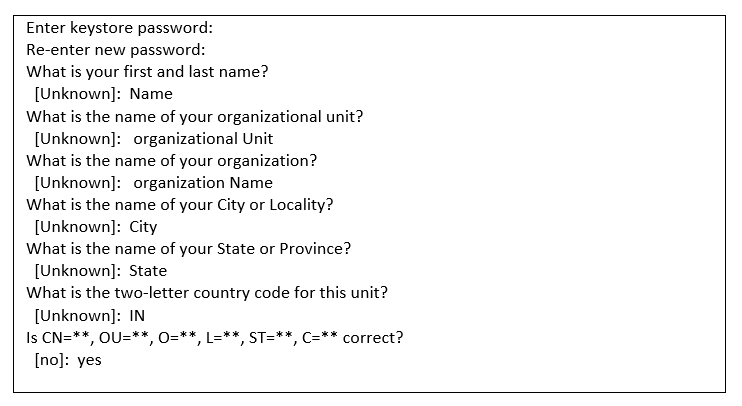

Executing the above command results in the following commands to populate and provide necessary details:                                                             Commands Generated by executing the self-signed cert

Upon successful execution, the Keystore.jks file will be generated. Move this into the Mule application location (src/main/resources).

Step 2: Run Anypoint Studio and create a new Mule project.

As illustrated in the below image, create a sample flow with HTTP Connector for HTTPS configuration, security filter and authorization filter for validating the HTTPS request based on the Spring module with basic authentication. In the Mule configuration file, drag the HTTP Listener and other required connectors from the palette and then test the application.

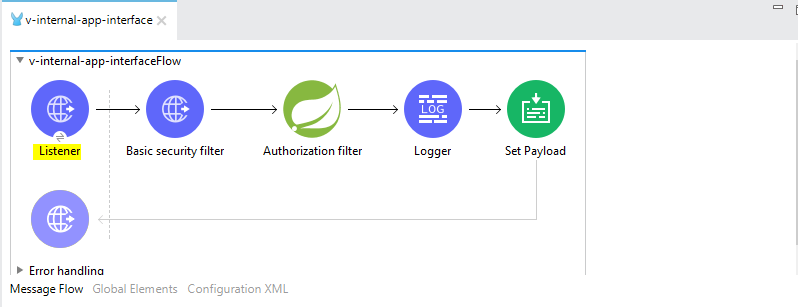

Internal App interface Flow in AnyPoint Studio

Step 3: Under HTTP Listener general configuration, set the protocol to HTTPS and use the 8082 as the port.

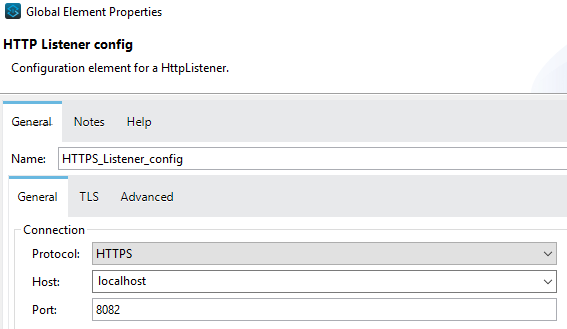

Setting Protocol as HTTPS, and 8082 as the port

Step 4: Under HTTP Listener TLS configuration, provide Keystore configuration parameters to apply HTTPS secured protocol policy.

The Keystore contains private keys and is essential only when a server is running on an SSL connection. Store public keys and the certificates issued from the certificate authority. Here, the focus is on the process of using the Keystore configuration.

Under HTTP Listener TLS Keystore configuration, pass Keystore type, location of the Keystore authenticated file (like .JKS file if Type=JKS) and other parameters.

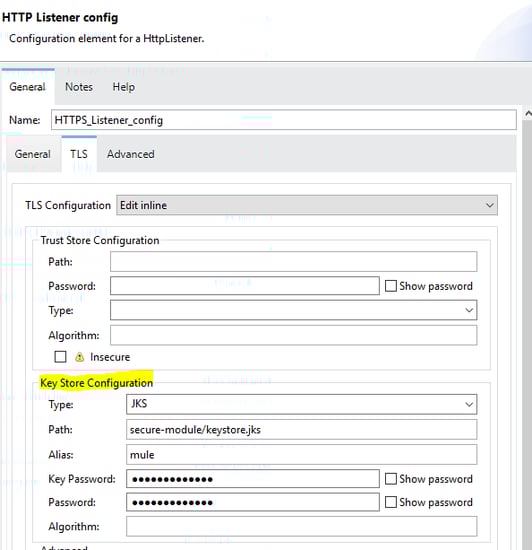

Key Store Configuration in HTTP Listener

The Mule application is now ready to provide HTTPS-based Listener service for all requests which are using this HTTPS configuration. Test this process using the application URL: https://localhost:8082/testPath. The below screenshot illustrates the request submitted successfully.

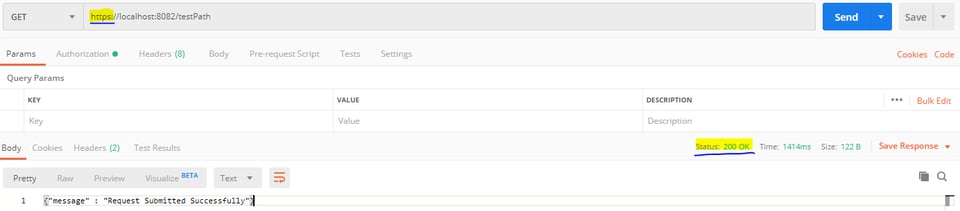

Response status is Success (200)

Process for Applying and Enabling Spring Authentication of HTTPS Requests

In this process, set up and configure the Mule application to be able to use the authorization filter with the Spring security manager for providing basic authentication to the HTTP/HTTPS Listener.

Steps in Applying HTTP/HTTPS Listener Basic Authentication

Step 1: Create a project in Studio 7 and add the Spring module from Exchange.

Step 2: Create an XML in the resources/basic-auth folder to define the bean configuration.

Step 3: Go to the global elements tab of your configuration and create the below configurations:

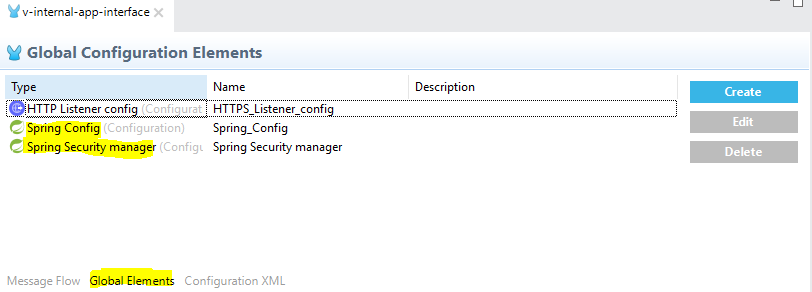

  1. Spring configuration to import basic-auth/beans.xml:                                    Spring Config
  2. Spring Security Manager to provide authentication-manager (defined in bean configuration XML: basic-auth/beans.xml) as delegate reference:

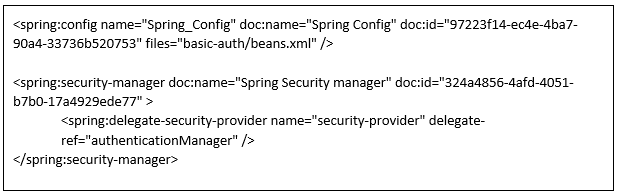

    Spring Security Manager to provide authentication-manager

Here, the developer should make sure the POM file must contain the following dependencies in the POM. Check the POM file for the Mule Maven plugin containing the following shared libraries:

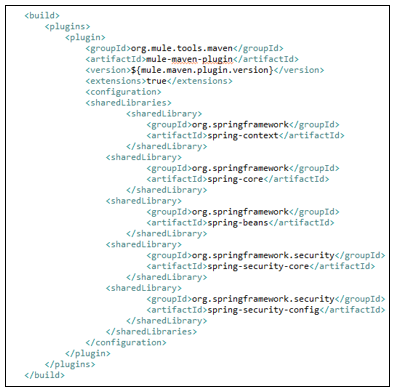

Shared Libraries in Maven Plugin

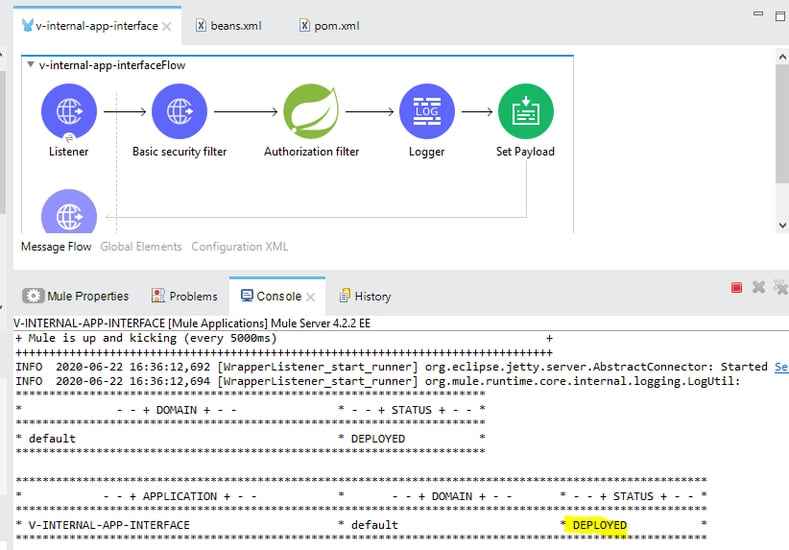

Step 4:  Design and execute the below flow with an HTTP Listener and add the security filter from the palette:                                                                                                  HTTP listener and add the security filter



Step 5:  It's common to test the HTTPS and basic authentication of Mule 4 HTTP Listener. Upon successful application deployment, perform the below steps:

  1. In Postman under Authorization, select Basic Auth as the Type.
  2. Provide a valid username and password.
  3. Trigger the application URL: https://localhost:8082/testPath

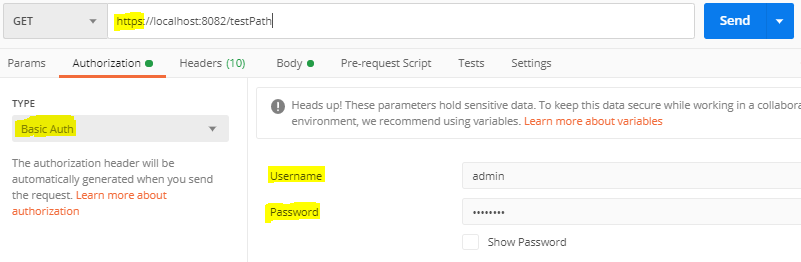

Basic authentication Test to Listen to Mule 4 HTTP

Note: If the request submitted is valid, then it will be successful and the response status will be “Success (200).” If the request submitted is invalid, then the response status will be “Not Authorized (401).”
